CCTV Surveillance
Analogue HD System | IP System
Analogue HD System
AHD DVR
| Brand | Centrix | ||
| Model |  HVR4104M |

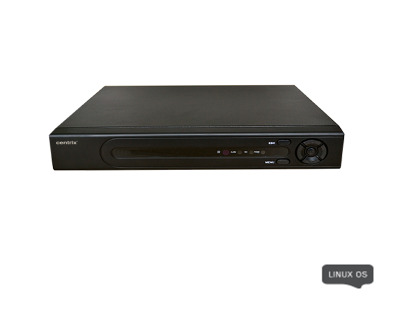

 HVR4108M |
 HVR4216M |
| Video input | 4x BNC | 8x BNC | 16x BNC |
| Video output | 1x HDMI, 1x VGA | ||
| Audio I/O | 4/1 | 4/1 | 6/1 |
| Codec | H.264 | ||
| Encode | 4x 4MP @ 8fps 4x 3MP @ 10fps 4x 1080p @ 15fps 4x 720p @ |
8x 4MP @ 8fps 8x 3MP @ 10fps 8x 1080p @ 15fps 8x 720p @ |
16x 4MP @ 8fps 16x 3MP @ 10fps 16x 1080p @ 15fps 16x 720p @ |
| Live view | 4 channels | 8 channels | 16 channels |
| Playback | 4 channels | 8 channels | 8 channels |
| HDD bay | 1x SATA | 1x SATA | 2x SATA |
| Network | 1x 10/100Mbps ethernet port | ||
| USB port | 2x | 2x | 3x |
| Remote view | Windows, Android, iOS | ||
AHD Camera
| Brand | Centrix | |||
| Model |  IHD60MS |
 IHD80MS |
 IHW60MS |

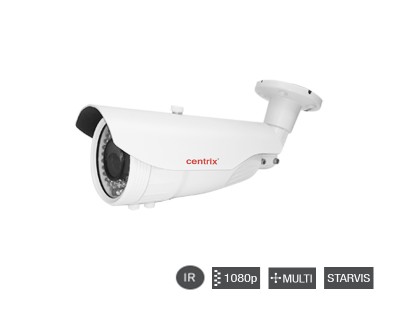

 IHW80MS |
| Type | Indoor dome | Outdoor weatherproof IP67 | ||
| Image sensor | 1/2.8” Sony Starvis IMX291 | |||
| Lens | 3.6 mm fixed | 2.8 - 12 mm varifocal | 3.6 mm fixed | 2.8 - 12 mm varifocal |
| Image system | AHD, CVI, TVI and Analogue | |||
| Resolution | 2.0MP (1920×1080 pixels) | |||
| Infrared | Up to 20 metres | Up to 30 metres | Up to 30 metres | Up to 40 metres |
| Power input | 12V DC | |||
IP System
IP NVR
| Brand | Centrix | |||||
| Model |  BNV45 |
 BNV85 |

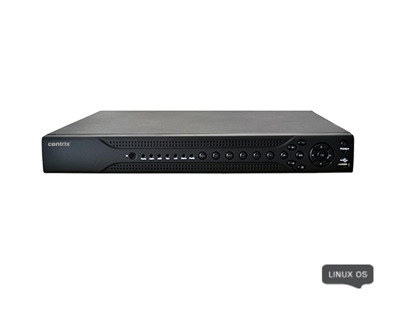

 BNV165 |
 NVS4-1P |

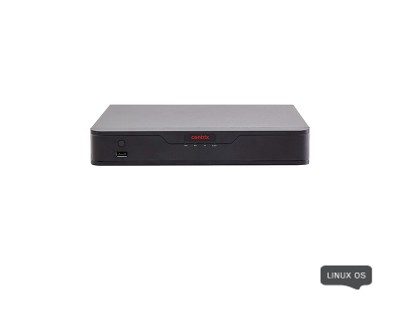

 NVS8-1P |

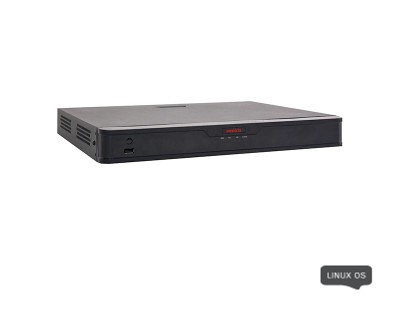

 NVS16-2P |
| Video input | 4ch 4M/1080P | 8ch 4M/1080P | 16ch 4M/1080P | 4ch 4M/1080P | 8ch 4M/1080P | 16ch 4M/1080P |
| Video output | 1x HDMI, 1x VGA | |||||
| Audio I/O | 0/0 | 0/0 | 1/1 | 1/1 | 1/1 | 1/1 |
| Codec | H.264/H.265 | |||||
| Live view | 4 channels | 8 channels | 16 channels | 4 channels | 8 channels | 16 channels |
| Playback | 4 channels | 4 channels | 8 channels | 4 channels | 8 channels | 8 channels |
| HDD bay | 1x SATA | 1x SATA | 2x SATA | 1x SATA | 1x SATA | 2x SATA |
| Network | 1x 10/100Mbps ethernet port | |||||
| PoE | Not available | 4x 100Mbps | 8x 100Mbps | 16 100Mbps | ||
| USB port | 2x | 2x | 3x | 2x | 2x | 3x |
| Remote view | Windows, Android, iOS | |||||
IP Camera
| Brand | Centrix | |||

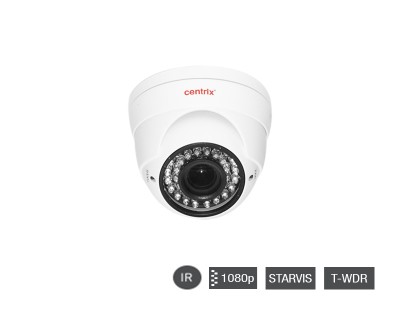

| Model |  IPD55S |

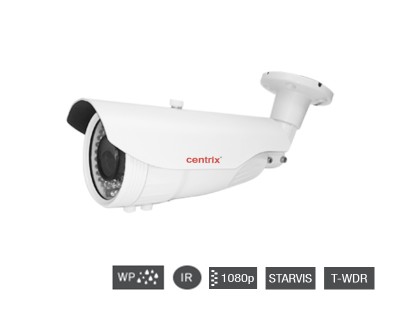

 IPW55S |

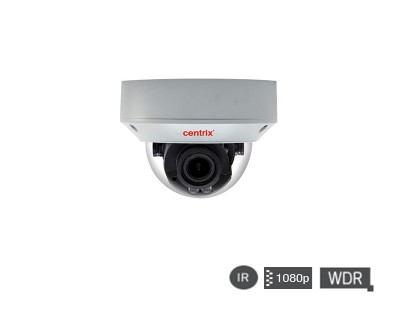

 D25-2812M |

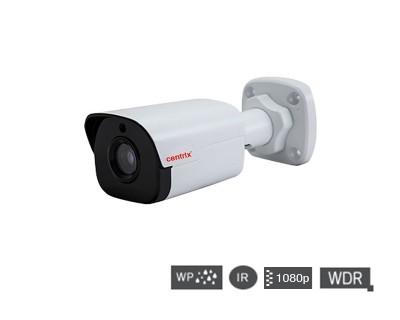

 W25-40 |
| Type | Indoor dome | Outdoor weatherproof IP67 | Indoor dome | Outdoor weatherproof IP67 |
| Image sensor | 1/3" Sony Starvis IMX290 | 1/3" progressive scan CMOS | 1/2.7" progressive scan CMOS | |
| Lens | 2.8 - 12 mm varifocal | 2.8 - 12 mm varifocal | 4 mm | |
| Protocol | ONVIF | |||
| Resolution | 2.0MP (1920×1080 pixels) | 2.0MP (1920×1080 pixels) | ||
| Infrared | Up to 30 metres | Up to 40 metres | Up to 30 metres | |
| Network | 1x 10/100Mbps ethernet | |||
| Power input | 12V DC or PoE | |||
